詳細情報

モデル番号:	BH-WS	圧力範囲:	ゲージ圧力、絶対圧力
精度グレード:	0.2%,00.5%	IP評価:	IP68
正味重量:	2.1kg	横隔膜材料:	316Lステンレス鋼
住宅資料:	316Lステンレス鋼	安定性:	±0.1%F.S/年 (タイプ)
測定範囲:	0〜10m…400m	過負荷:	≤2x定格範囲
精度 @25ºC:	±0.25％（typ。）±0.5％（最大）	動作温度:	-20〜100°C
保管温度:	-30〜100ºC	防爆等級:	エキシアルCT6
出力信号:	4〜20mA、0〜10/20mA、0/1〜5V、0/1〜10V、0.5〜4.5V
ハイライト:	sewage level sensor IP68 , 316L stainless steel water level transmitter , high accuracy sewage level sensor

製品の説明

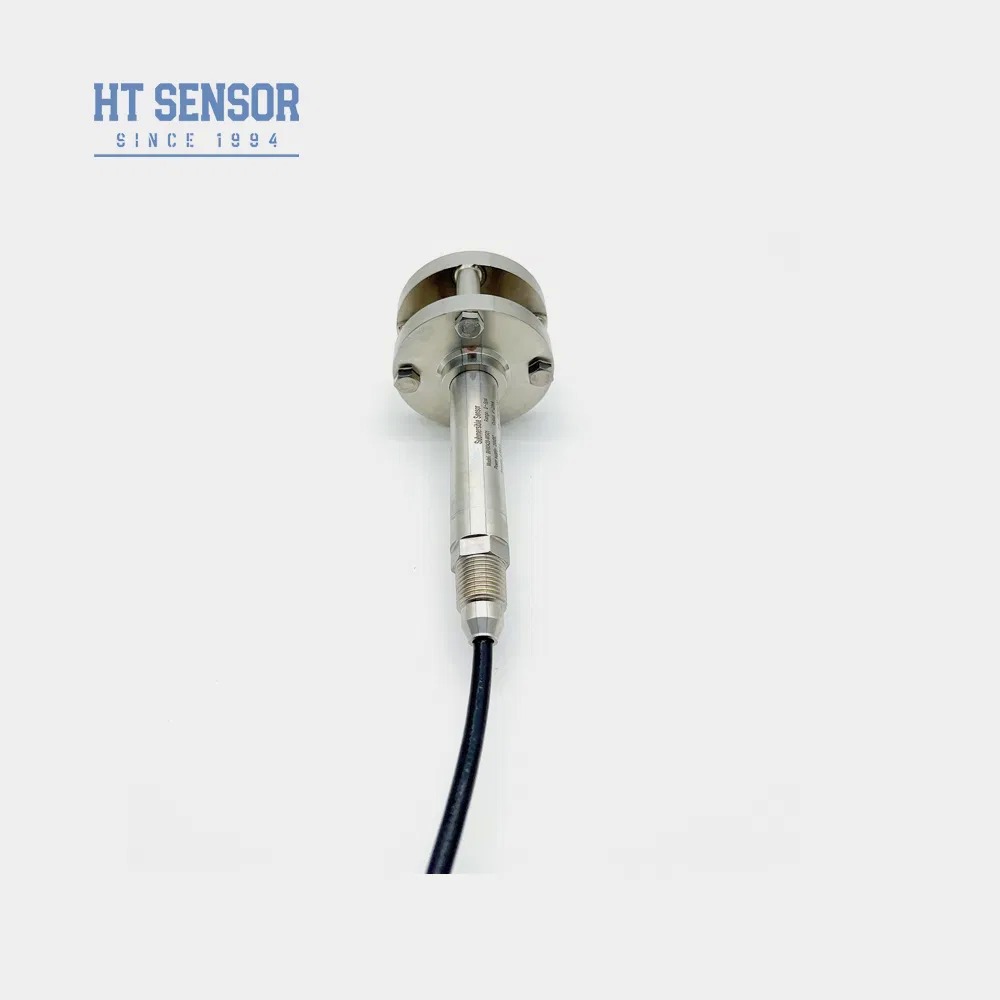

HT Series BH93420-WS Sewage Level Sensor for Harsh Environments

Product Description

BH93420-WS Sewage Level Sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with full 316L stainless steel construction.

Introduction

This transmitter is suitable for measuring liquid levels in environments with contaminated liquids, including:

Sludge tanks and clarifiers
Digesters and alum tanks
Chemical storage tanks and oil tanks
Lime slurry, sewage pits, and water reservoirs

Product Features

Specially designed for harsh environments
Explosion-proof marking: ExiaIICT6
High protection: IP68
Full 316L stainless steel structure with excellent corrosion resistance
High precision and good stability

Applications

Compatible with 316LSS, noncorrosive liquids
Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
Level measurement in polluted liquids

Performance Parameters

Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	-10-80ºC
Operating Temperature	-20~100ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	316L Stainless Steel
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP67, IP68
O-Ring Seal	Fluoro rubber
Weight	~2.1Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE

Output Signal

Supply Voltage	Output Type
12~30VDC	4~20mA (2/3/4 wire)
5VDC	0~10/20mA (3 wire), 0/1~5V, 0/1~10V, 0.5~4.5V

Ordering Tips

Ensure the measured medium is compatible with product components
Specify the density of the measured medium
For strong electromagnetic or radio frequency interference, provide details
Install lightning protection devices and ensure proper grounding

Order Guide

Code	Option
WS	Pressure Transmitter
D1	24VDC Power Supply
D2	5VDC Power Supply
S1	4~20mADC Output
S2	1~5VDC Output
G	Gauge Pressure
C1	PE Cable Material

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Up to 30,000 units per month. Contact our sales team for large orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: What is the warranty and after-sales service?
A: 24-month warranty with 24-hour response time for support questions.

タグ:

証明:	CE, RoHS, ISO9001

最小注文数量:	1
価格:	200
