| 証明: | CE,RoHS,ISO9001 |
|---|---|
| 最小注文数量: | 1 |
| 価格: | 60 |
| 圧力範囲: | 0-4m | 表示タイプ: | 導かれた |
|---|---|---|---|
| 精度グレード: | 00.25%00.5% | IP評価: | IP68 |
| 正味重量: | 0.6kg | 横隔膜材料: | 316Lステンレス鋼 |
| 安定性: | ±0.1%F.S/年 (タイプ) | 補償時間: | -10〜70ºC |
| 測定範囲: | 0〜10m…4m | 過負荷: | ≤2x定格範囲 |
| 再現性: | ±0.03％（typ。）±0.05％FS（最大） | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | ステンレス鋼 1Cr18Ni9Ti |
| 防爆等級: | エキシアルCT6 | ||
| ハイライト: | HT BH93420IIK water level transmitter,IP68 stainless steel water level sensor,0-4m range water level transmitter |
||

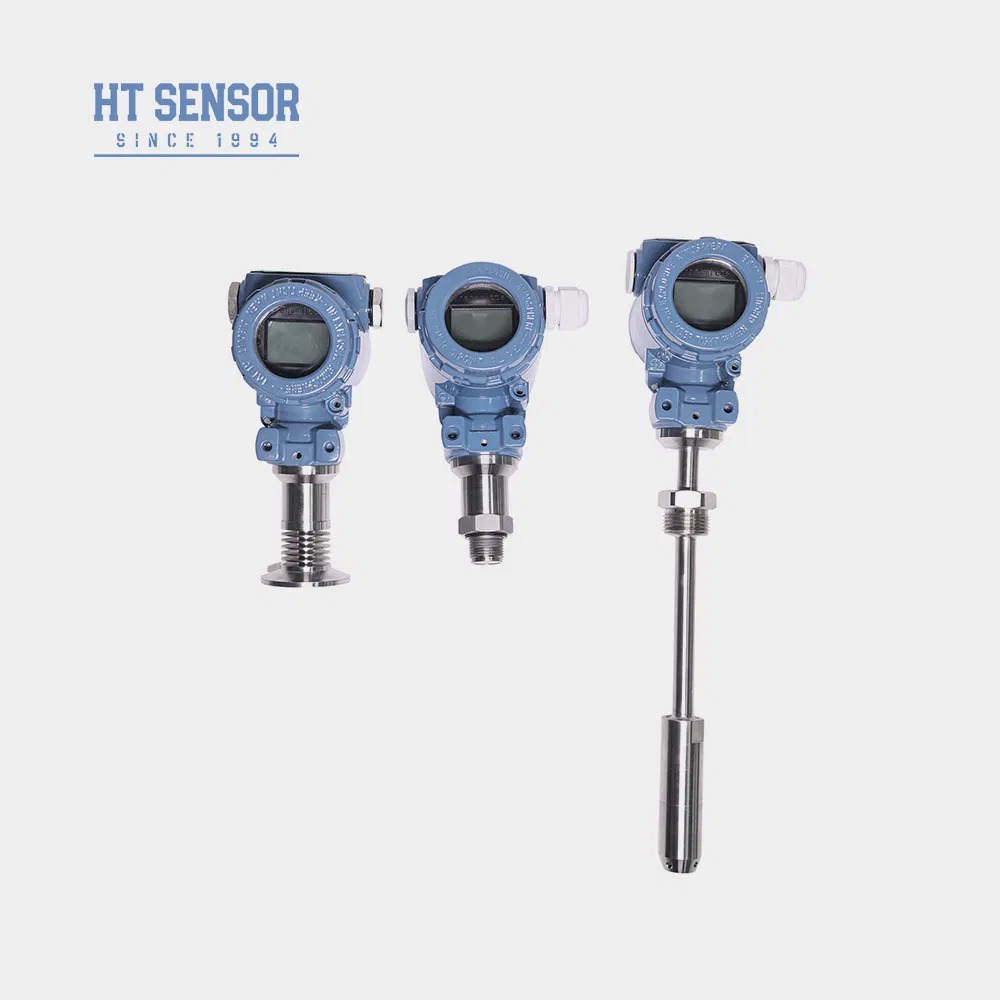

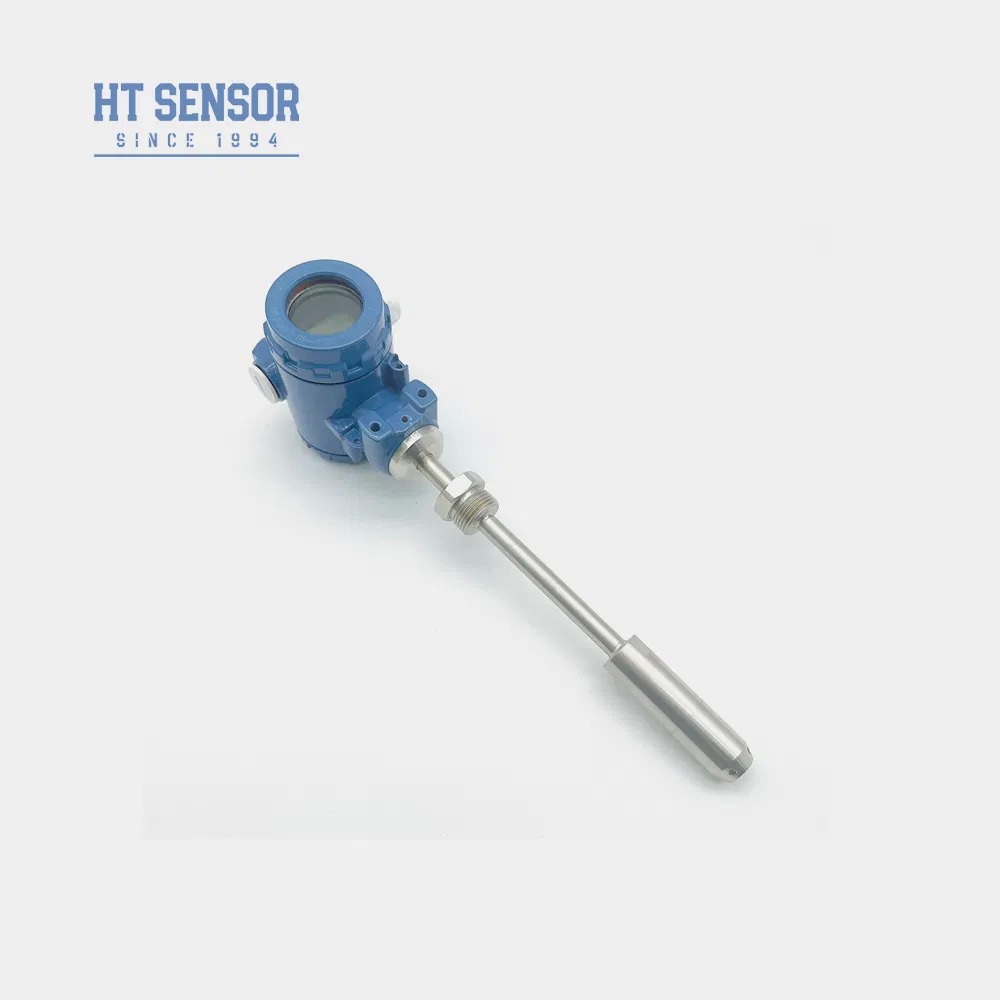

The BH93420-IIK/IIIK armored insertion water level transmitter utilizes a highly accurate piezoresistive diffused silicon pressure sensor for precise liquid level measurement in open containers, including corrosive media. Its durable construction features a high-strength stainless steel tube and measuring probe with standard flange installation, ensuring reliability in challenging environments.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m…4m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2 X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| RS485 Communication Protocol | 4 wire |
| Component | Code | Option |
|---|---|---|
| Base Model | BH93420 | Armored water level transmitter |
| Measurement Range | 0~10m…4m | |
| Power Supply | D1 | 24VDC |
| Output Signal | S1 | 4~20mADC |
| Flange/Interface Size | F1-F4, M1-M3 | Various stainless steel options |
