| 証明: | CE, RoHS,ISO9001 |
|---|---|
| 最小注文数量: | 1 |
| 価格: | 55 |
| 型番: | BPZ2008 | 測定培地: | ガス |
|---|---|---|---|
| 精度グレード: | 0.5g | 圧力範囲: | 0kpa~10kpa...4MPa |
| IP 評価: | IP65 | カスタマイズされた: | カスタマイズされた |
| 圧力タイプ: | 差圧 | 住宅資料: | 316L |
| 保護等級: | IP65 | 重さ: | 0.45kg |
| 輸送パッケージ: | 標準輸出用 箱付きの梱包 | 仕様: | シリコン圧力センサー |
| 商標: | HTセンサ | 起源: | バオジ,中国 |
| Hsコード: | 9026209090 | 生産能力: | 2000pcs/月 |

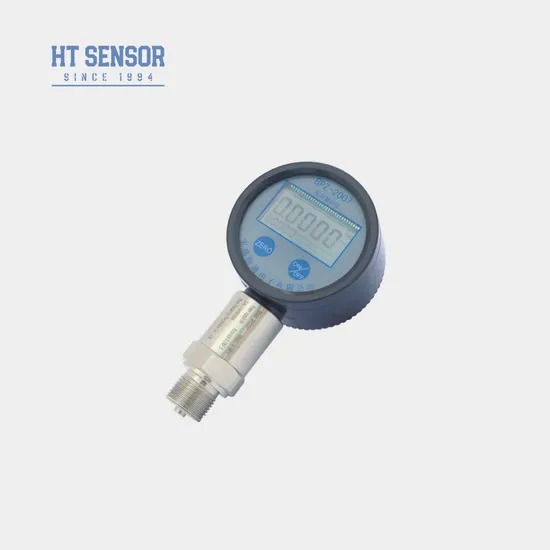

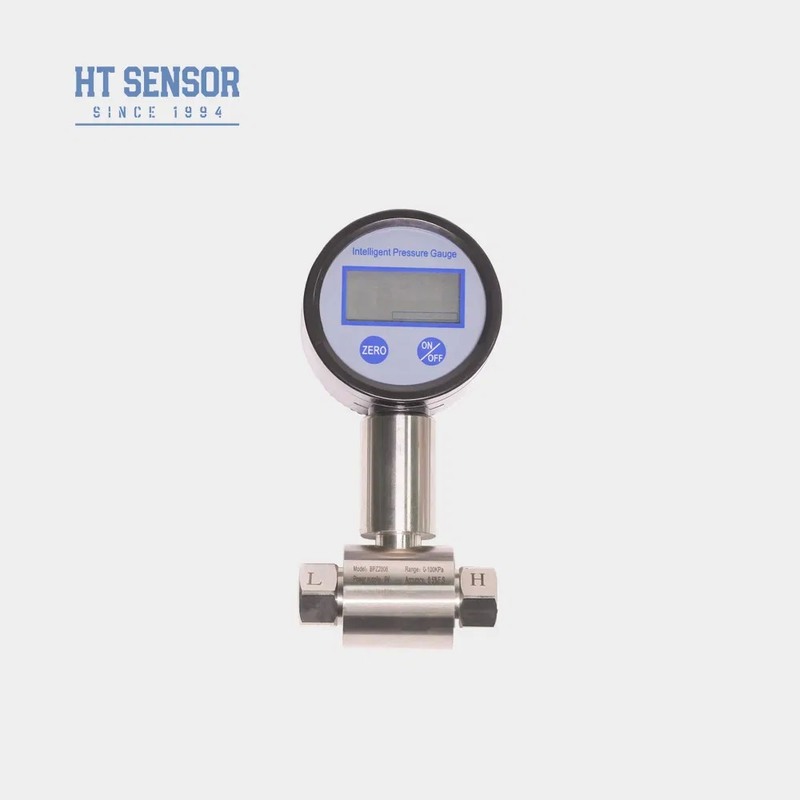

| ハイライト: | 5-digit LCD pressure gauge,digital pressure transmitter 9V,battery-powered differential pressure sensor |
||
| Performance Parameters | |
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Ordering tips |
