| ハイライト: | Hygienic Applications Pressure Transmitter Sensor,Easy to Clean Pressure Transducer,Explosion-proof Pressure Sensor |
||
|---|---|---|---|

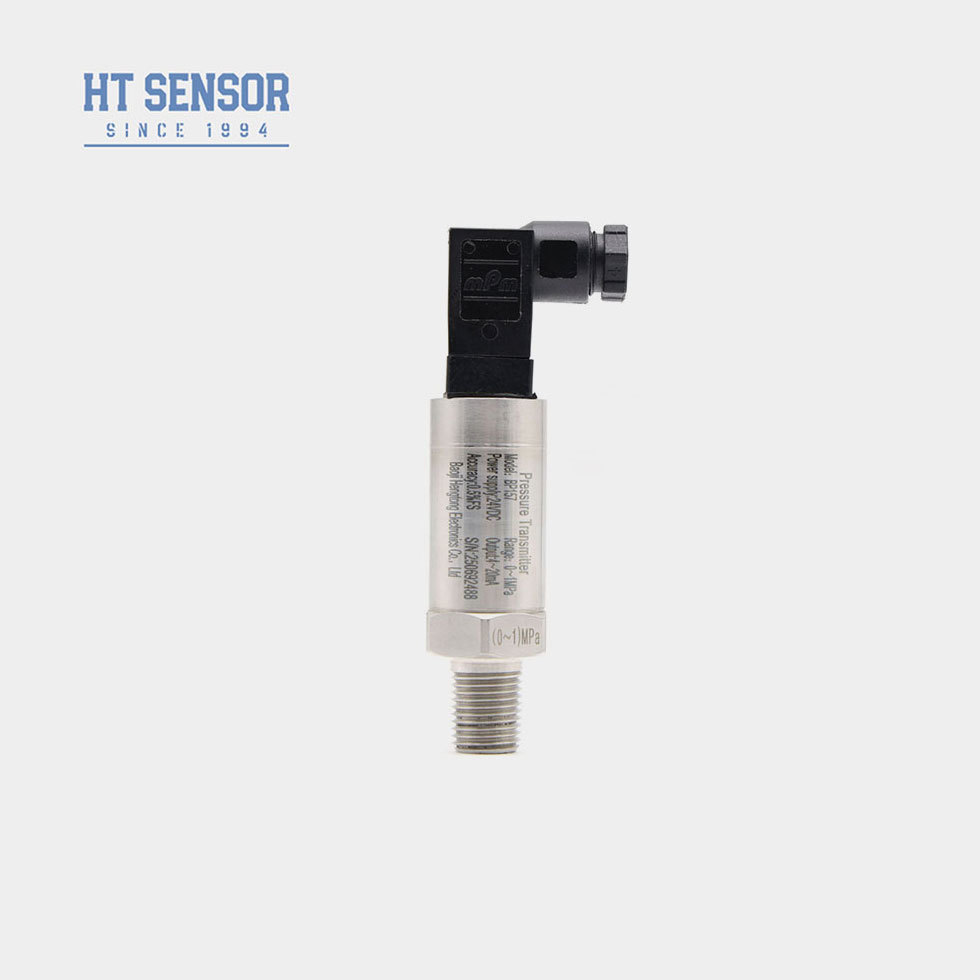

BP93420-IQT High temperature transmitters feature heat sinks to improve heat dissipation performance. The heat sink maintains close contact with the sensor, rapidly transferring heat through thermal conductive material to keep the sensor's working temperature within a reliable range.
| Measurement Range | 0~35Kpa…~3.5MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.55kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Outline Construction | |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa (0-X)Kpa or MPa (X indicates actual measuring range) |
|---|
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
