| 保護: | IP65 | センサー材料: | ステンレス鋼316 |
|---|---|---|---|
| 中温: | -40-100℃ | メディア: | 液体,ガス,蒸気流出 |
| 製品機能: | 安全性も高い 適応力も高い | 通信プロトコル: | ハート |
| 測定スパン: | 0〜62.2kpa | モドル: | BP93420D-IIIA |

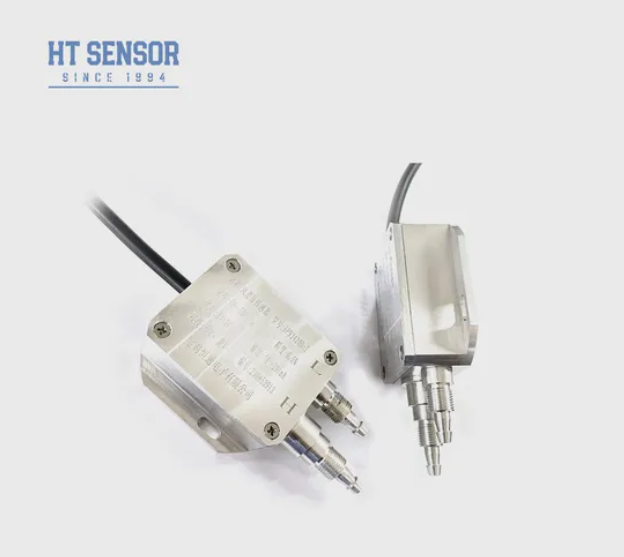

| ハイライト: | BP93420D-IIIA Differential Pressure Transmitter,0~62.2kPa Measurement Span Pressure Transducer,-40-100 ℃ Medium Temperature Level Sensor Transmitter |
||
| Parameter | Specification |
|---|---|
| Measurement Range | 0-500Pa...~200kPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static Pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0.5~4.5V |
5VDC |
