| 防水: | IP65,IP66,IP67,IP68 選択可能 | 測定培地: | ガスまたは液体 |
|---|---|---|---|
| 取り付けタイプ: | 直接またはリモート | 送信機タイプ: | 容量式圧力トランスミッター |
| タイプ: | 電子 | ポートサイズ: | 1/4 npt |
| 接触: | φ6パゴダ口H59銅 | 品質: | 高品質 |
| 保証: | 2年 | トランスポートパッケージ: | 標準輸出用 箱付きの梱包 |
| 電気接続: | M20*1.5 | 湿った材料: | ステンレス鋼 |
| 毛細血管: | はい | カスタマイズ: | OEM |
| 二次変数: | 静圧 | ||
| ハイライト: | IP65 Differential Pressure Sensor,500PA~200kpa Pressure Transmitter,24VDC Differential Pressure Transmitter |
||

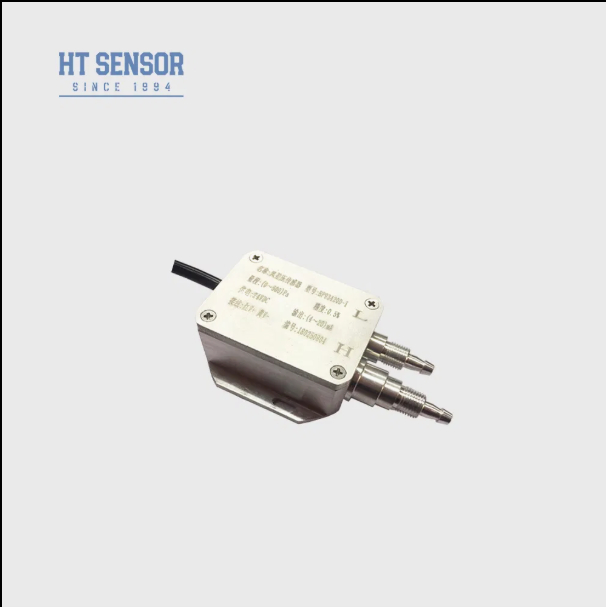

The BP93420D-I differential pressure transmitter utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. Designed for measuring small differential pressures of non-corrosive dry gases, it's ideal for applications in boiler air supply, underground ventilation, and cleanroom pressure monitoring.
| Model Number | BP93420D-I |
|---|---|
| Measuring Medium | Gas |
| Accuracy Grade | 1.0G |
| Pressure Range | 500PA~200kpa |
| IP Rating | IP65 |
| Power Supply | 24VDC |
| Output Signal | 4-20mA /0-10VDC |
| Housing Material | Aluminium alloy |
| Connection | φ6 air nozzle |
| Measurement Range | 0-500Pa to 0-200KPa (multiple ranges available) |
|---|---|
| Pressure Type | Differential Pressure |
| Static Pressure | 2 times of rated range |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) / ±1% (Maximum) |
| Temperature Drift | ±2.5%F.S/ºC (Typical) / ±3%F.S/ºC (Maximum) |
| Operating Temperature | -20ºC to 80ºC |
| Storage Temperature | -40ºC to 100ºC |
| Package Size | 14.20cm × 5.50cm × 8.00cm |
|---|---|
| Gross Weight | 0.250kg |
| Transport Package | Carton |
