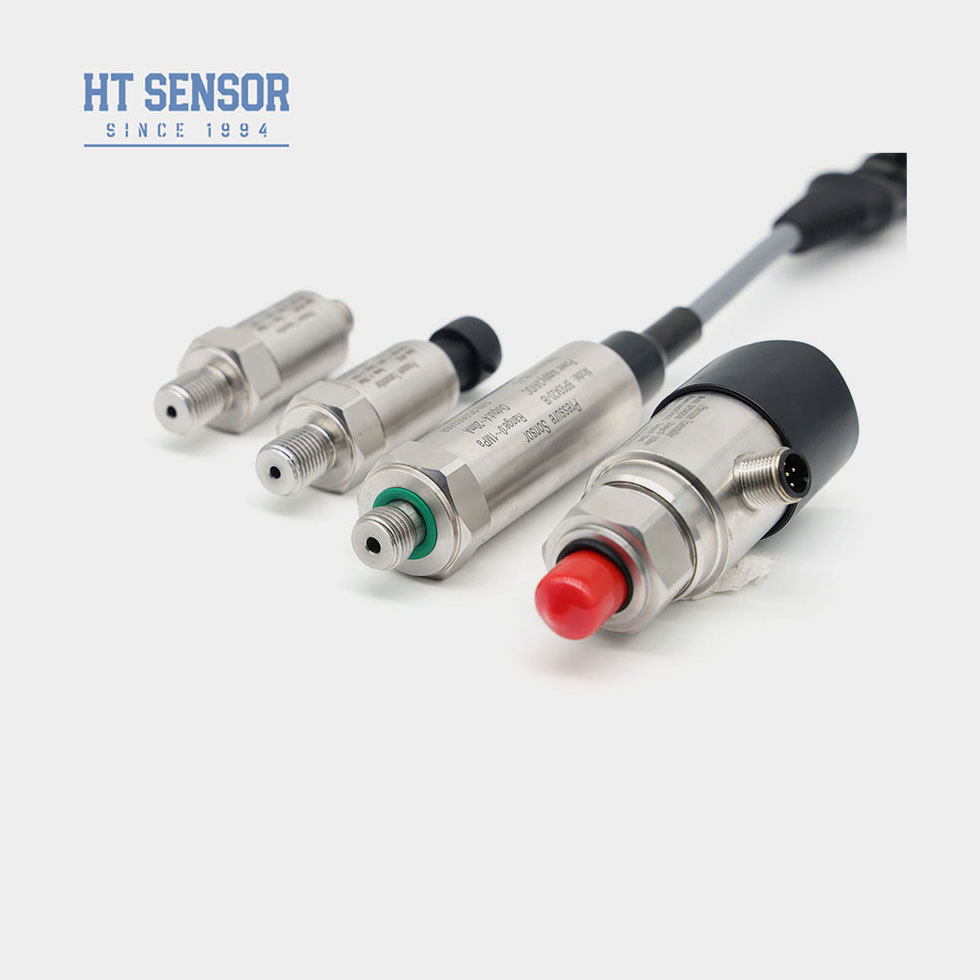

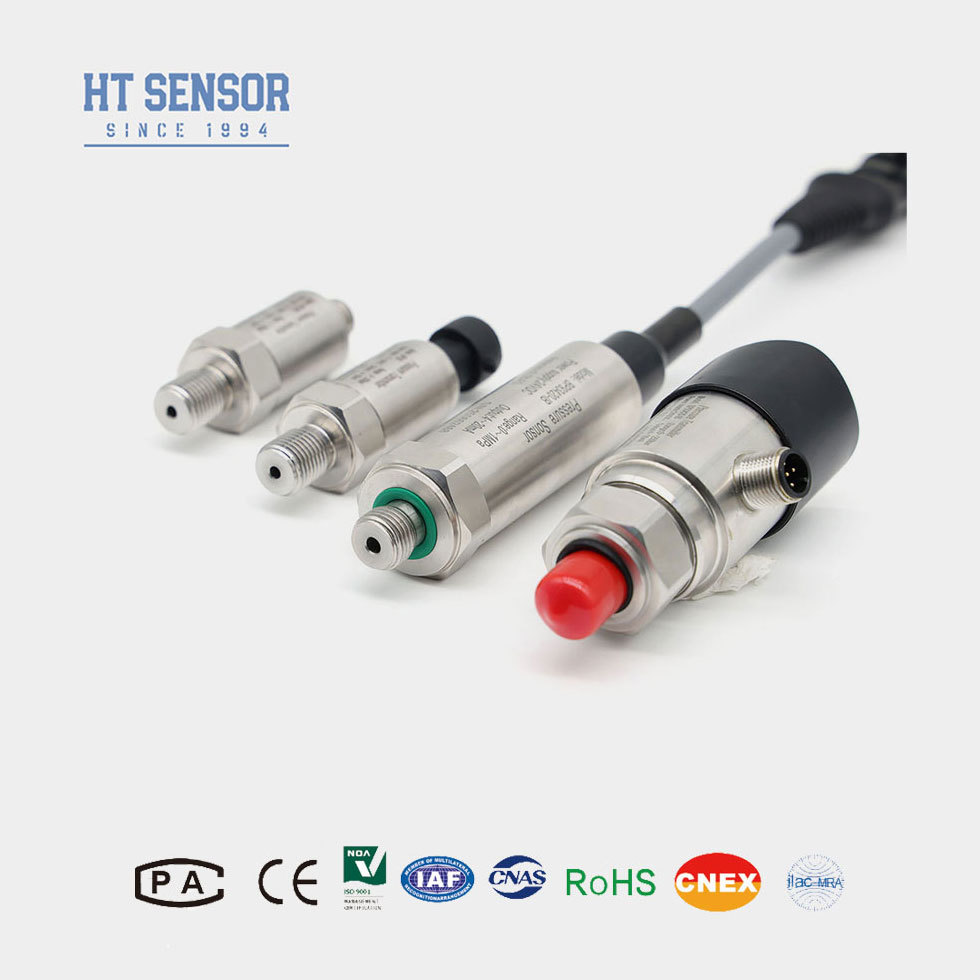

HTsensor BP156 Industrial Pressure Sensor for High-Performance Air Compressors and Refrigeration Equipment
Product Details
| モデル番号: | BP156 | 測定培地: | ガス |
|---|---|---|---|
| 精度グレード: | 0.2g | 圧力範囲: | 0kpa~10kpa...5MPa |
| IP評価: | IP65 | 圧力タイプ: | 測定圧,絶対圧,密封圧 |
| 住宅資料: | 316L | 重さ: | 0.1kg |
| 横隔膜材料: | 316L | 動作温度: | -20ºC〜80ºC |
| 保管温度: | -40ºC〜120ºC | 出力信号: | 4〜20mA、0〜10/20mA、0/1〜5V、0/1〜10V、0.5〜4.5V |
| 供給電圧: | 12〜30VDC、5VDC | 周波数応答: | 2.4kHz |
| 絶縁抵抗: | 100MΩ100VDC | ||
| ハイライト |
HTsensor BP156 pressure transmitter,0.5-4.5V industrial pressure sensor,IP65 waterproof pressure transmitter |
||
Product Description
- Wide measuring range with stainless steel structure and diverse pressure interface options
- Compact and lightweight design for easy integration
- Adjustable zero and full-scale settings
- High precision measurement with all stainless steel construction
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure the measured medium is compatible with the product's contact parts
- Note that explosion-proof type products don't include digital display heads
- For transmitters with LCD/LED display, power supply should not be below 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
- Default cable length is 1.5m (polyethylene); specify alternative materials if needed
- Inform us about special requirements like vibration, impact, or electromagnetic interference
| BP15X | Analog Pressure Transmitter | |
| Code | Outline Construction |
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Measurement Range: 0kPa ~ 10kPa…5MPa | |
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range |
Product Highlights
BP156 Pressure Transmitter The BP156 pressure transmitter is a cost-effective solution designed specifically for air compressors and refrigeration equipment. Featuring advanced technology and a high-performance transmitter circuit developed in-house, this product offers compact size, superior ...
