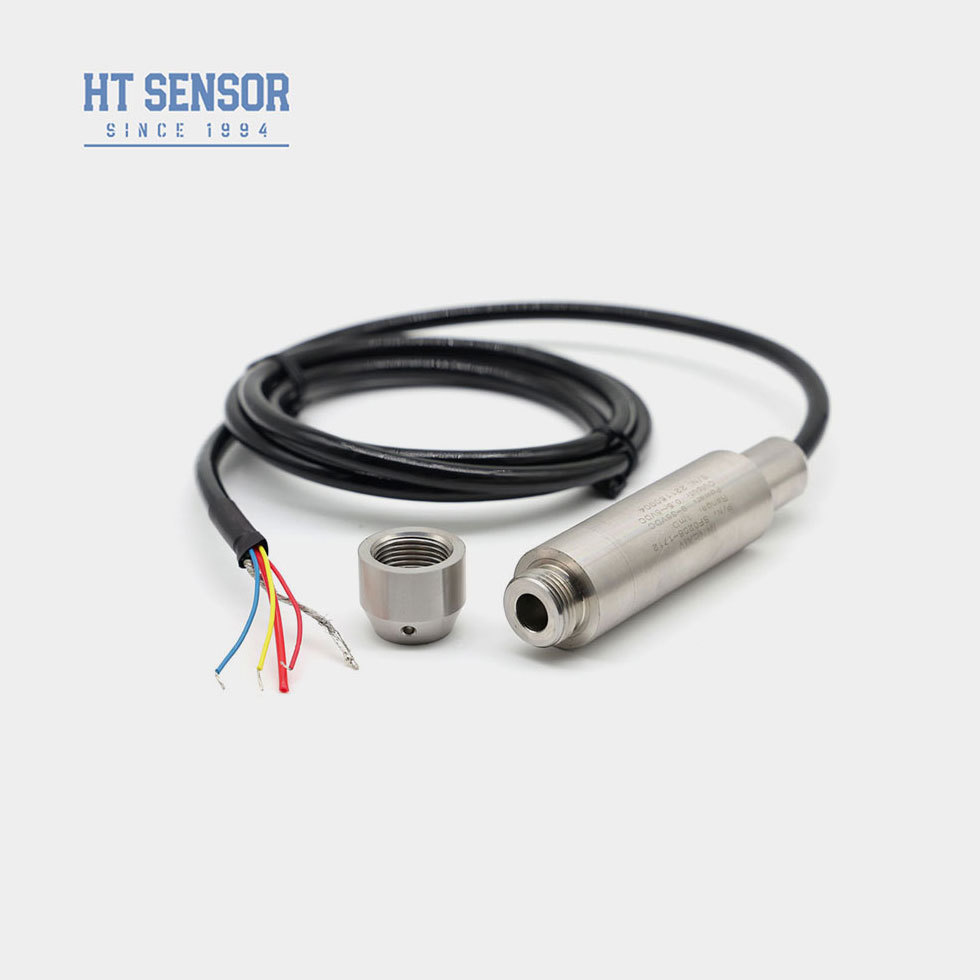

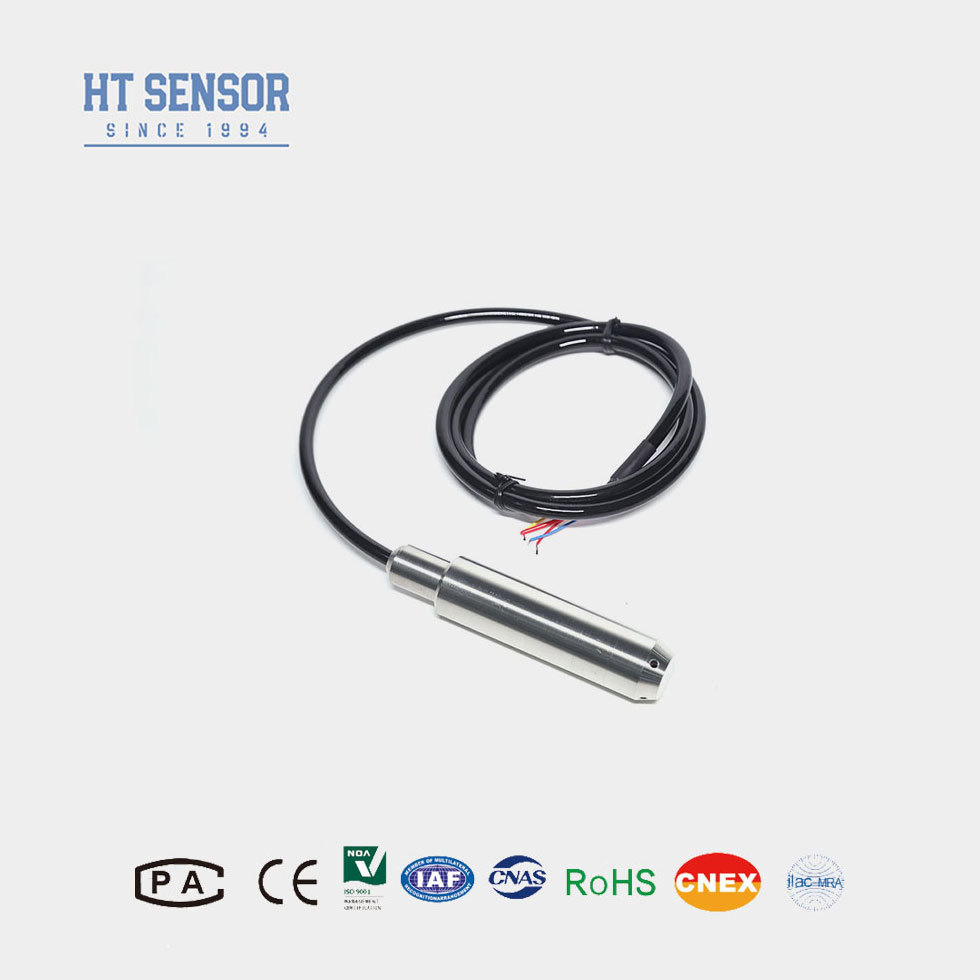

HT Series Water Level Transmitter with 4-20mA Output and Fully Welded Stainless Steel Housing and Thread
Product Details
| モデル番号: | BH93420-IT | 圧力範囲: | ゲージ圧力、絶対圧力 |
|---|---|---|---|
| 精度グレード: | 00.25%00.5% | IP評価: | IP68 |
| 正味重量: | 0.3kg | 横隔膜材料: | 316Lステンレス鋼 |
| ケーブル材料: | PE,PU,PTFE | 測定範囲: | 0〜10m…400m |
| 過負荷: | ≤2x定格範囲 | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | 1CR18NI9TI、316Lステンレス鋼 |
| 絶縁抵抗: | > =100MΩ@100VDC | 防爆等級: | エキシアルCT6 |
| 出力信号: | 4〜20mA、0〜10/20mA、0/1〜5V、0/1〜10V、0.5〜4.5V | ||
| ハイライト |
4-20mA fuel level sensor,316L stainless steel diaphragm sensor,water level transmitter with warranty |
||
Product Description
- Fully welded design for safety and reliability
- Dual options for probe insertion and threaded installation
- Rigorously tested for high and low temperature performance
- Explosion-proof marking: ExiaIICT6
- PTFT and PU cable options
- Multiple output signal configurations available
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
- Ensure compatibility between measured medium and product components
- Specify the density of the measured medium
- For strong electromagnetic or RF interference environments, provide details with your order
- Install lightning protection devices and ensure proper grounding for reliable operation
| Code | Option |
|---|---|
| BH93420 | Basic Model |
| IT | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel Material |
| 02 | 316L Stainless Steel Material |
| C1 | PU Cable Material |
| C2 | PTFE Cable Material |
