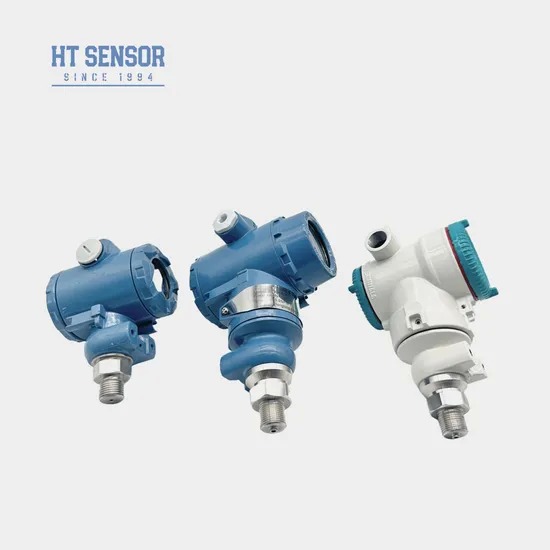

BP93420-III Pressure Transmitter 0.5% Accuracy IP65 316L
Product Details
| モデル番号: | BP93420-III | 測定培地: | 液体 |
|---|---|---|---|
| 精度グレード: | 0.5％ | 圧力範囲: | -100kpa...0kpa ~10kpa...100MPa 試聴する |
| IP評価: | IP65 | 圧力タイプ: | 測定圧,絶対圧,密封圧 |
| 住宅資料: | 316L | 周波数応答: | 2.4kHz |
| 重さ: | ~1.2kg | 過負荷: | 定格範囲の1.5倍以下 |
| 再現性: | ≤±0.1%FS | 長期 安定性: | ±0.1％FS/年（典型）±0.2％FS/年（最大） |
| 動作温度: | -20ºC〜80ºC | 横隔膜材料: | 316L |
| 防爆等級: | 前db IIC T6 GB | ||
| ハイライト |
industrial pressure sensor with IP65,316L pressure transmitter 0.5% accuracy,BP93420-III pressure transmitter IP65 |
||
Product Description
The BP93420III pressure transmitter utilizes HT series silicon piezoresistive isolation oil-filled core as the signal measuring element. The signal processing circuit converts the sensor signal into standard output signals. Rigorous testing and aging screening of components ensures stable, reliable performance with strong anti-interference capability.
- Wide measuring range with diverse pressure interface forms and IP65 protection level
- Multiple output signal forms with adjustable and displayable options
- Adjustable zero point and full scale calibration
- High-precision diffused silicon piezoresistive pressure sensor core
- Measurement of non-corrosive gases and liquids in 316L stainless steel environments
- Petroleum, chemical, metallurgy, power, and hydrology industries
- Pressure measurement and control in harsh outdoor industrial environments
- Hydraulic and pneumatic control systems
| Parameter | Specification |
|---|---|
| Measurement Range | -100kPa...0kPa ~10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure medium compatibility with product contact parts
- Explosion-proof models don't include digital display heads
- For LCD/LED display models, power supply should be ≥20VDC
- Install lightning protection devices and ensure proper grounding
- For temperatures below -20ºC, specify EPDM O-ring seal
- Default cable length is 1.5m (polyethylene material)
- Specify special requirements (vibration, EMI/RFI, etc.) in order
| Code | Description |
|---|---|
| BP93420XX | Pressure Transmitter |
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm/High-temperature Pressure Transmitter |
