| モデル番号: | BH93420-I |
| 最小注文数量: | 1 |
| 価格: | 38 |
| モデル番号: | BH93420-I | 圧力範囲: | ゲージ圧力、絶対圧力 |
|---|---|---|---|
| 精度グレード: | 00.25%00.5% | IP評価: | IP68 |
| 正味重量: | 0.3kg | 横隔膜材料: | 316Lステンレス鋼 |
| シェル素材: | 304S.Sまたは316L | 出力信号: | 4~20mA など |
| 測定範囲: | 0〜10m…400m | 過負荷容量: | ≤2x定格範囲 |
| 動作温度: | -20~80°C | 保管温度: | -30〜100ºC |
| 防爆等級: | エキシアルCT6 | 保護評価: | IP67、IP68 |
| ケーブル材料: | ポリエチレン、ポリウレタン | ||
| ハイライト: | HT static pressure level transmitter,water level transmitter with IP68,level transmitter 0.25% accuracy |
||

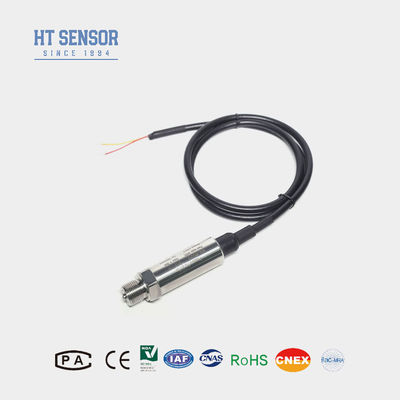

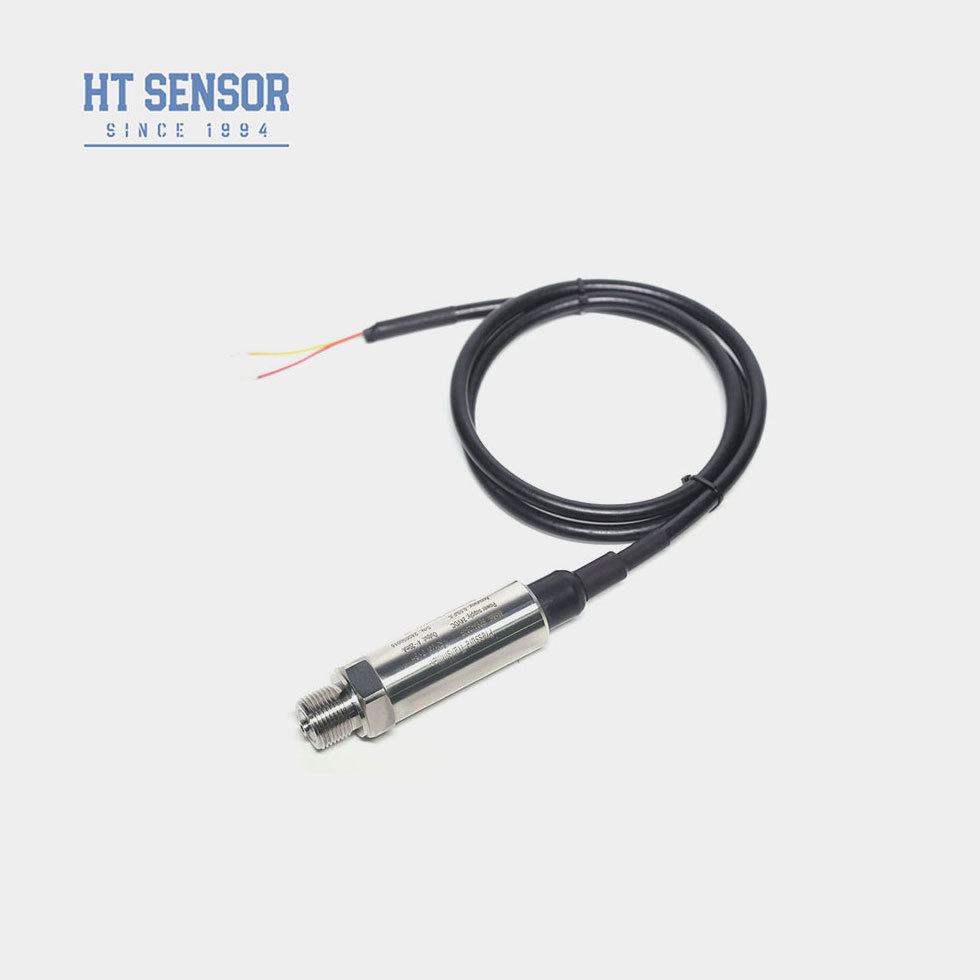

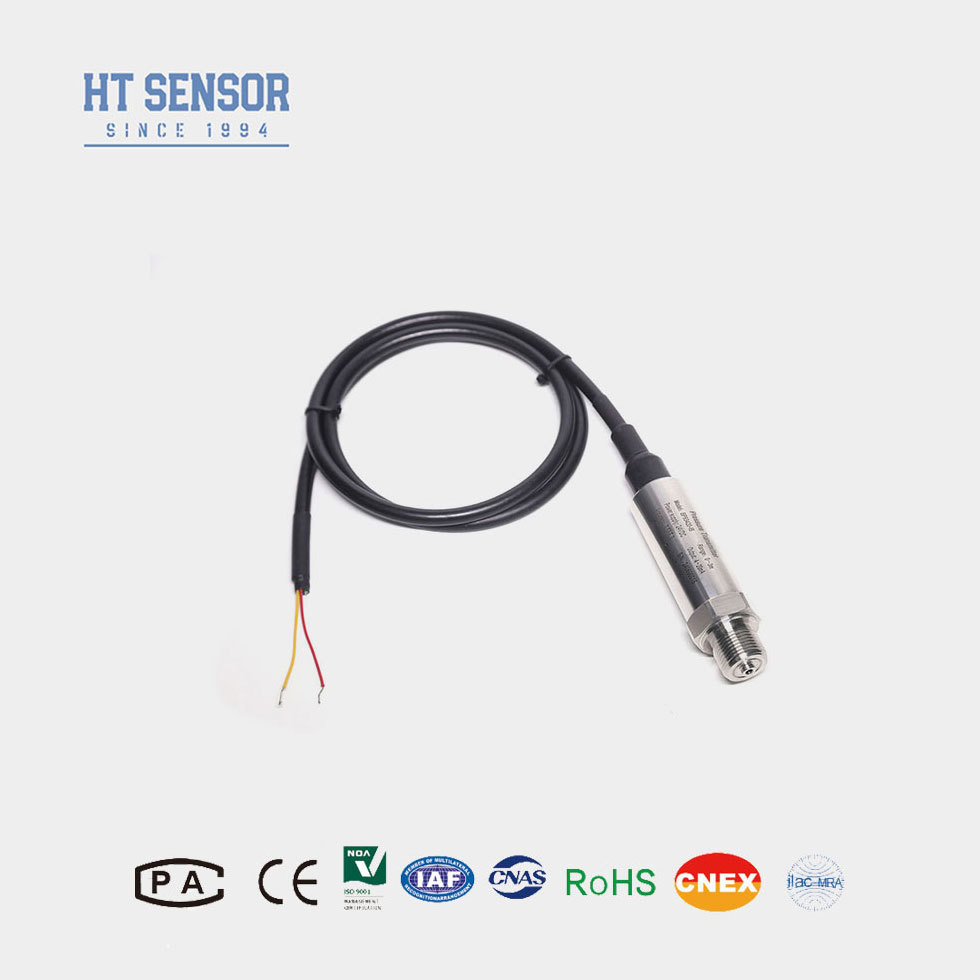

BH93420-I Liquid Level Transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with hexagonal and water guide head design, employing waterproof sealing technology to meet various installation requirements and adapt to different application scenarios.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
| Order Guide | ||||||||
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0～10m…400mH2O | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | 3.6V battery | |||||||
| D4 | other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Housing Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
