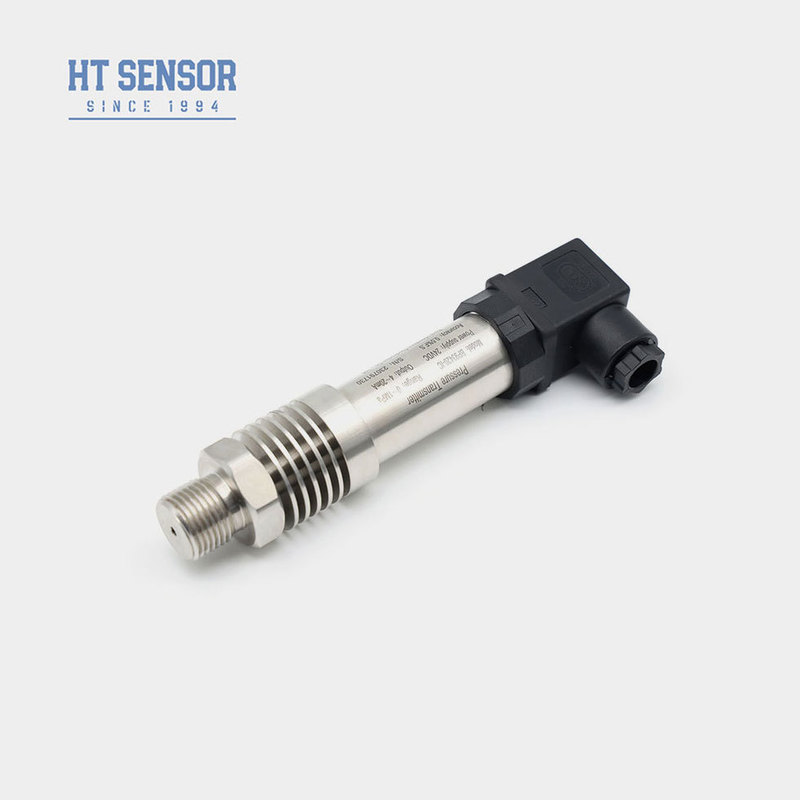

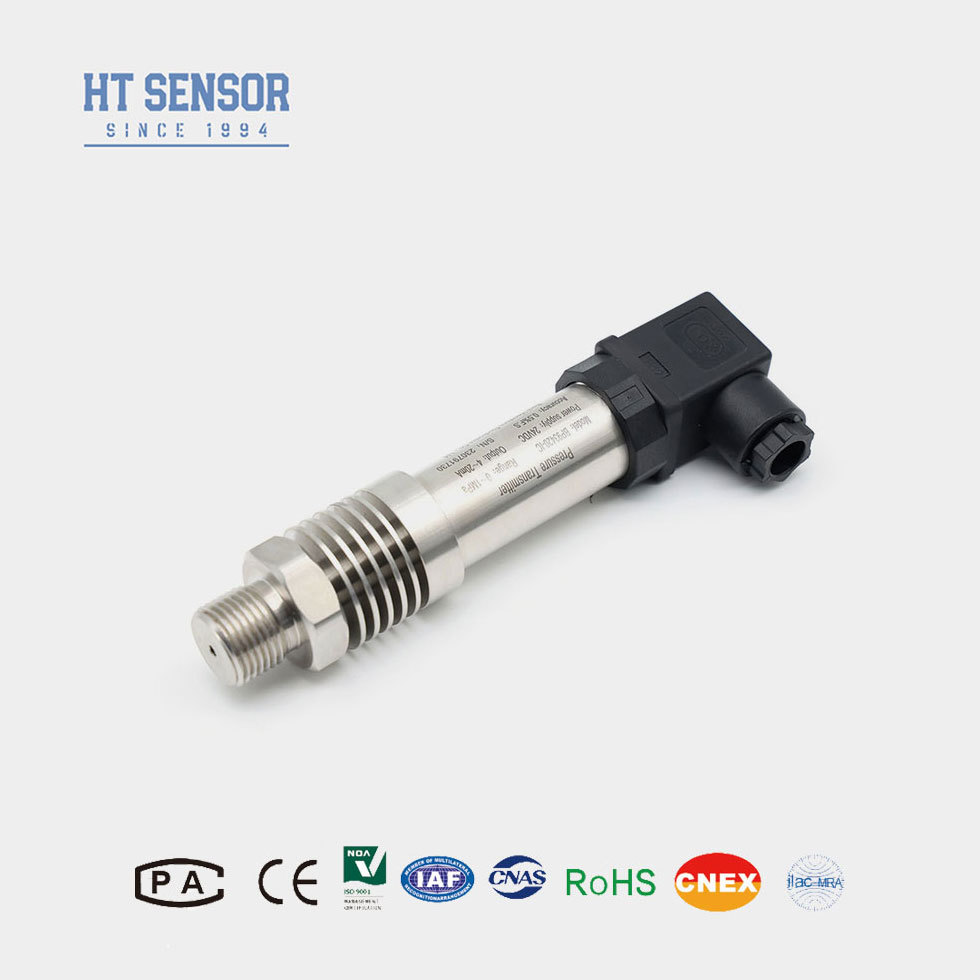

BP93420-IC 4-20mA Pressure Transmitter 0.5% Accuracy IP65
Product Details
| モデル番号: | BP93420-IC | 測定培地: | 液体 |
|---|---|---|---|
| 精度グレード: | 0.5％ | 圧力範囲: | -100kpa...0kpa ~10kpa...100MPa 試聴する |
| IP評価: | IP65 | 圧力タイプ: | 測定圧,絶対圧,密封圧 |
| 住宅資料: | 316L | 重さ: | ~0.4kg |
| 過負荷: | 定格範囲の1.5倍以下 | 再現性: | 0.1%FS |
| 長期 安定性: | ±0.1％FS/年（典型）±0.2％FS/年（最大） | 動作温度: | -20°C~150°C |
| 保管温度: | -40ºC〜120ºC | 出力信号: | 4〜20mA、0〜10/20mA、0/1〜5V、0/1〜10V、0.5〜4.5V、RS485 |
| 供給電圧: | 12〜30VDC、5VDC、3.6〜30V /バッテリー | ||
| ハイライト |
4-20mA pressure transmitter IP65,industrial pressure sensor 0.5% accuracy,pressure transmitter with warranty |
||
Product Description
- Wide measuring range with stainless steel construction
- Multiple pressure interface options available
- IP65 protection rating
- Adjustable zero and full-scale settings
- High precision measurement
- All stainless steel structure for durability
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
- Marine and aviation industries
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20ºC~150ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Weight | ~0.3kg |
- Ensure medium compatibility with product contact parts
- Explosion-proof models don't include digital display heads
- Models with LCD/LED displays require ≥20VDC power supply
- Recommended to install lightning protection and ensure proper grounding
- Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
- Default cable: 1.5m polyethylene (other materials available on request)
- Specify special requirements (vibration, EMI/RFI, etc.) when ordering
| Order Guide | ||||||||
|
BP93420XX BPHT24 |
Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| I | With Cable | IX | Display Pressure Transmitter | |||||
| IB | Hirschmann Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter (2088) | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IC | High-temperature Pressure Transmitter | |||||
| IQ | 50.4mm Clamp Pressure Transmitter | IQT | 50.4mm Clamp High-temperature Pressure Transmitter | |||||
| Measurement Range | -0.1. . .0～0.01．．．100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | S8 | RS485 | |||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 1/2NPT | |||||||
| J5 | 1/4NPT | |||||||
| J6 | G1/2, Flush Structure | |||||||
| J7 | 50.4 clamp | |||||||
| J8 | 50.4 clamp with Heat Sink | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
Product Highlights
BP93420-IC Pressure Transmitter Product Overview The BP93420-IC is a high-temperature pressure transmitter featuring an advanced HT series silicon pressure-resistance isolation oil-filled core. Its specialized heat dissipation structure efficiently captures medium pressure, making it ideal for ...
