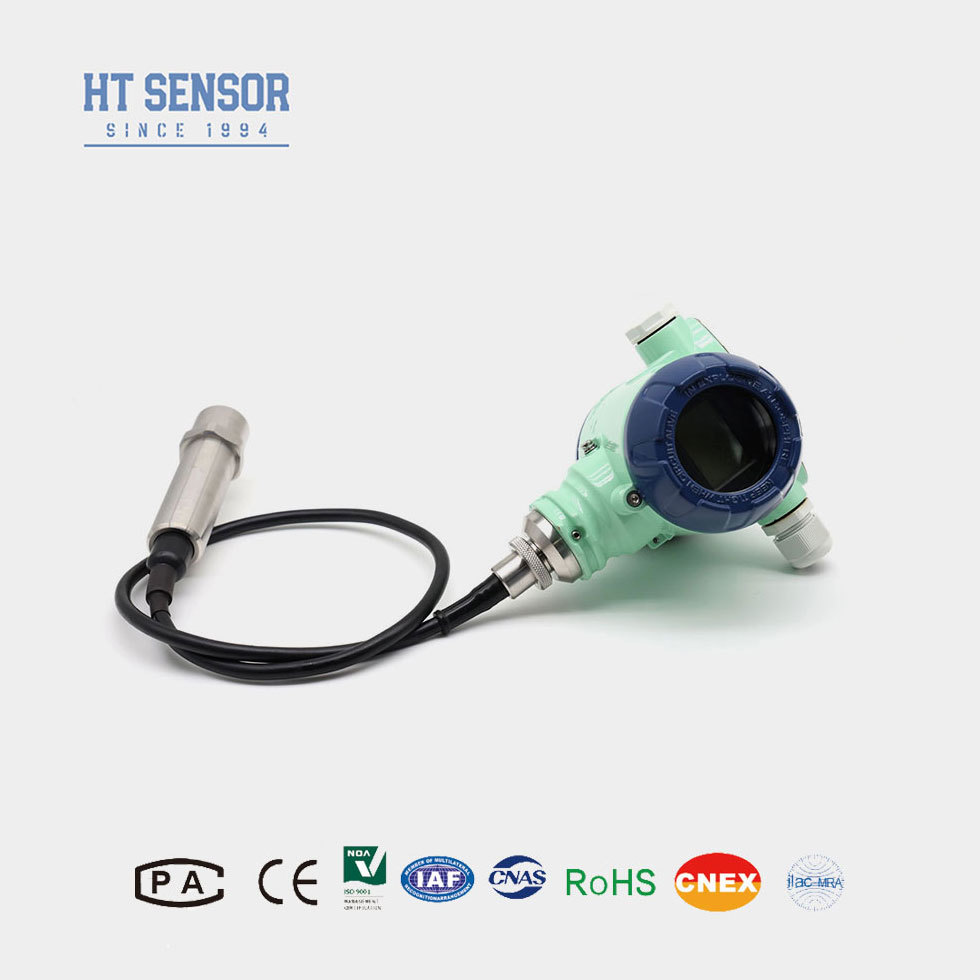

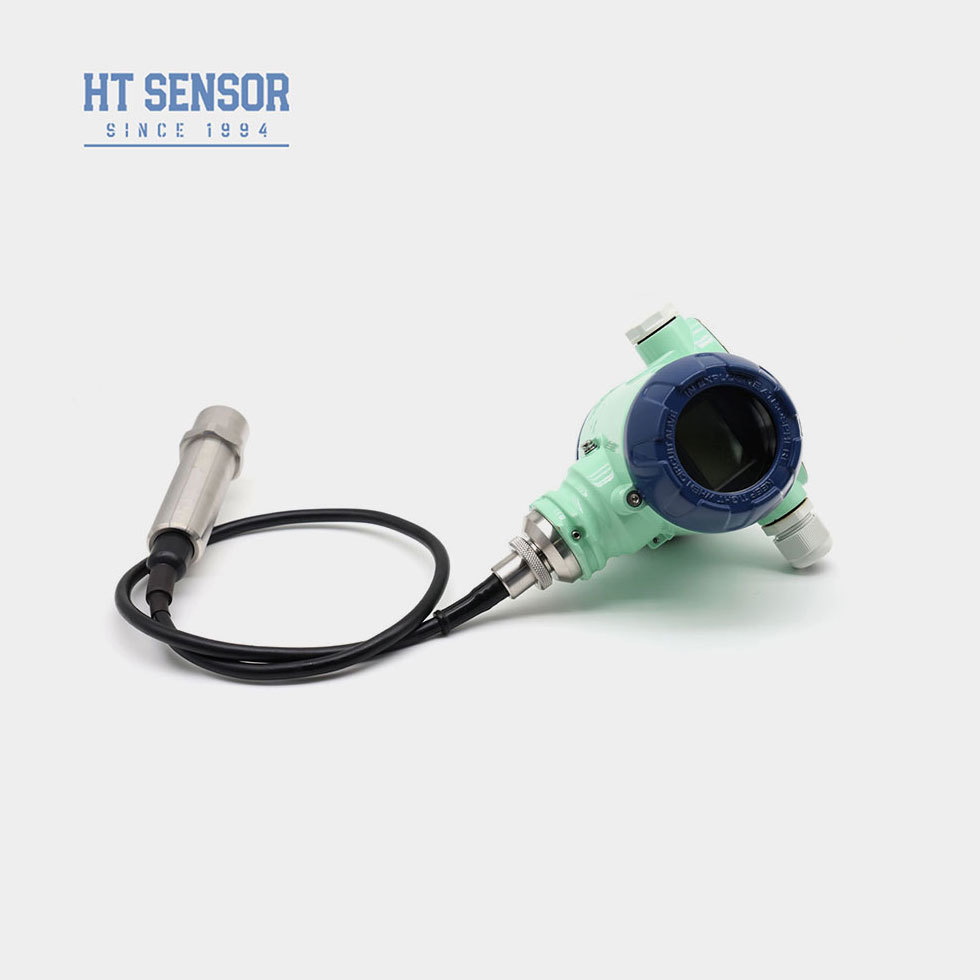

BH93420-III Advanced Water Level Transmitter for Industrial Applications
Product Details
| モデル番号: | BH93420-III | 圧力範囲: | 0-1m-400 mH2O |
|---|---|---|---|
| 表示タイプ: | 導かれた | 精度グレード: | 0.1%0.25% |
| IP評価: | IP68 | 正味重量: | 1.6kg |
| 横隔膜材料: | 316Lステンレス鋼 | 測定範囲: | 0〜10m…400MH2O |
| 圧力タイプ: | 測定圧,絶対圧,密封圧 | 過負荷: | ≤2x定格範囲 |
| 精度 @25ºC: | ±0.1％（typ。）±0.2％（最大） | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | 鋳造アルミニウム、ステンレス鋼1cr18ni9ti |
| 出力信号: | 4~20mA ハートで | ||
| ハイライト |
HT Sensor water level transmitter IP68,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty |
||
Product Description
The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.
- HART communication protocol output with display capability
- High accuracy (±0.1%) with excellent stability
- Explosion-proof rating: ExiaIICT6
- High protection level: IP68
- Multiple cable options: PE, PTFT, PU
- Versatile structures to meet various on-site requirements
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
Please ensure compatibility with measured medium and specify density when ordering.
