HT Series BH93420-IT Hex Liquid Level Transmitter 0.25% Accuracy IP68
Product Details
| モデル番号: | BH93420-IT | 圧力範囲: | ゲージ圧力、絶対圧力 |
|---|---|---|---|
| 精度グレード: | 00.25%00.5% | IP評価: | IP68 |
| 正味重量: | 0.3kg | 横隔膜材料: | 316Lステンレス鋼 |
| 安定性: | ±0.1%F.S/年 (タイプ) | 補償時間: | -10〜70ºC |
| 測定範囲: | 0〜10m…400m | 過負荷: | ≤2x定格範囲 |
| 再現性: | ±0.03％（typ。）±0.05％FS（最大） | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | 1CR18NI9TI、316Lステンレス鋼 |
| 防爆等級: | エキシアルCT6 | ||
| ハイライト |
HT Series liquid level transmitter,Hex liquid level transmitter IP68,Water level transmitter 0.25% accuracy |
||
Product Description

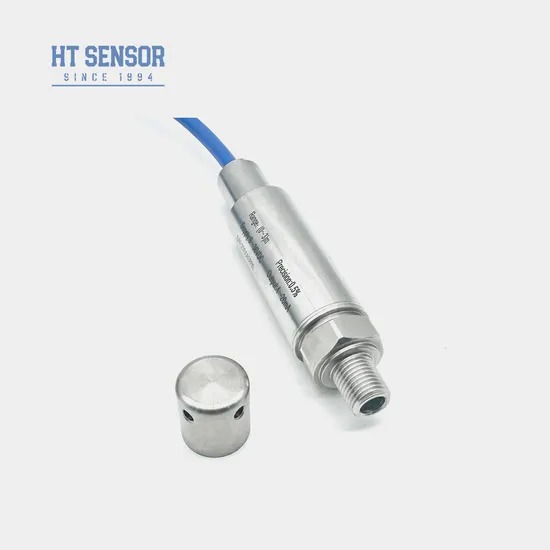

The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. Featuring a fully welded stainless steel housing with hexagonal and water guide head design, this transmitter employs waterproof sealing technology to meet various installation requirements and adapt to diverse application scenarios.
- Fully welded design ensures safety and reliability
- Dual installation options: probe insertion or threaded installation
- Rigorously tested for high and low temperature performance
- Explosion-proof rating: ExiaIICT6
- Available with PTFE or PU cables
- Multiple output signal options
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Operating Temperature | -20~80°C |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Protection Rating | IP67, IP68 |
| Output Signal Options | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 |
| Selection | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S2: 1~5VDC | S3: 0~5VDC | S4: 0~10mADC | S5: 0~20mADC | S6: 0~10VDC | S7: 0.5~4.5VDC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PU | C2: PTFE |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Customized products may vary.
