| 証明: | CE, RoHS, ISO9001 |
|---|---|
| 最小注文数量: | 1 |
| 価格: | 40 |
| モデル番号: | BH93420-II | 出力信号: | 4-20mAまたはRS485 |
|---|---|---|---|
| IP評価: | IP68 | 正味重量: | 0.3kg |
| 横隔膜材料: | 316Lステンレス鋼 | 正確さ: | 0.5%F.S |
| 測定範囲: | 0〜10m…400m | 圧力タイプ: | 測定圧,絶対圧,密封圧 |
| 過負荷: | 定格範囲の2 x以下 | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | 鋳造アルミニウム、1cr18ni9ti |
| 絶縁抵抗: | > =100MΩ@100VDC | 防爆等級: | エキシアルCT6 |
| 重さ: | 〜1.1kg（ケーブルなし） | ||
| ハイライト: | 4-20mA water level transmitter,high accuracy water level sensor,0.5% accuracy level transmitter |
||

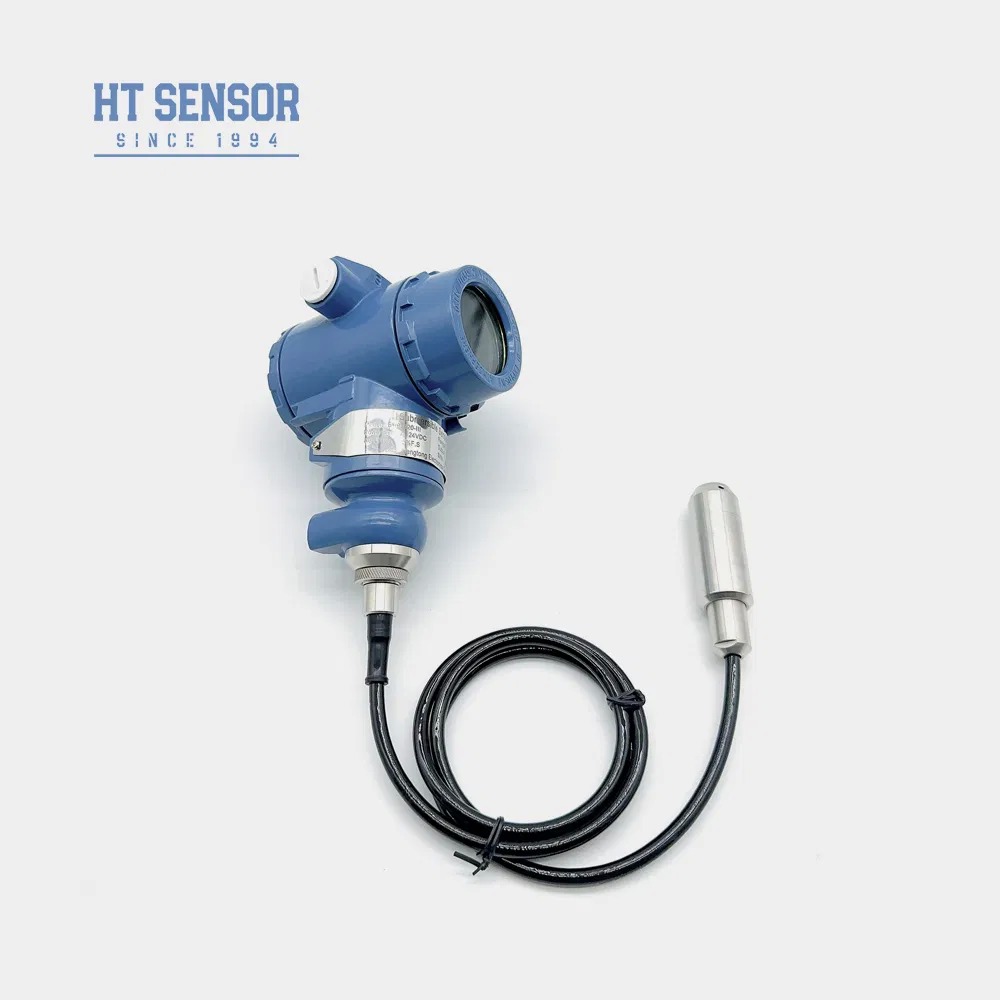

The BH93420-II water level transmitter utilizes a high-precision diffused silicon piezoresistive pressure sensor for accurate liquid level measurement. The static pressure measurement produces a millivolt signal proportional to liquid height, converted into a standard output signal through amplification circuitry.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±0.1% (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Protection Rating | IP68 |
| Output Signal | 4~20mA (15~30VDC) or RS485 |
| Option | Code | Description |
|---|---|---|
| Model | BH93420-II/III | Liquid level transmitter with 2088 housing |
| Power Supply | D1 | 24VDC |
| Output Signal | S1/S2 | 4~20mADC or RS485 |
| Housing | B4/B5 | 2088 industrial housing (with/without display) |
| Pressure Type | G/A/S | Gauge/Absolute/Sealed Reference Pressure |
| Cable Material | C1/C2/C3 | PE/PU/PTFE |
