| 証明: | CE, RoHS, ISO9001 |
|---|---|
| 最小注文数量: | 1 |
| 価格: | 42 |
| 出力信号: | 4-20mAまたはRS485 | IP評価: | IP68 |
|---|---|---|---|
| 正味重量: | 0.3kg | 横隔膜材料: | 316Lステンレス鋼 |
| 正確さ: | 00.25%,0.5% | 測定範囲: | 0〜10m…400m |
| 圧力タイプ: | 測定圧,絶対圧,密封圧 | 過負荷容量: | ≤2x定格範囲 |
| 再現性: | ±0.03％（typ。）±0.05％FS（最大） | 長期 安定性: | ±0.2%F.S/年 (最大) |
| 動作温度: | -20~80°C | 保管温度: | -30〜100ºC |
| 住宅資料: | 1Cr18Ni9Ti | 絶縁抵抗: | > =100MΩ@100VDC |
| 防爆等級: | エキシアルCT6 | ||
| ハイライト: | 4-20mA submersible water level sensor,IP68 water level transmitter,high accuracy water level sensor |
||

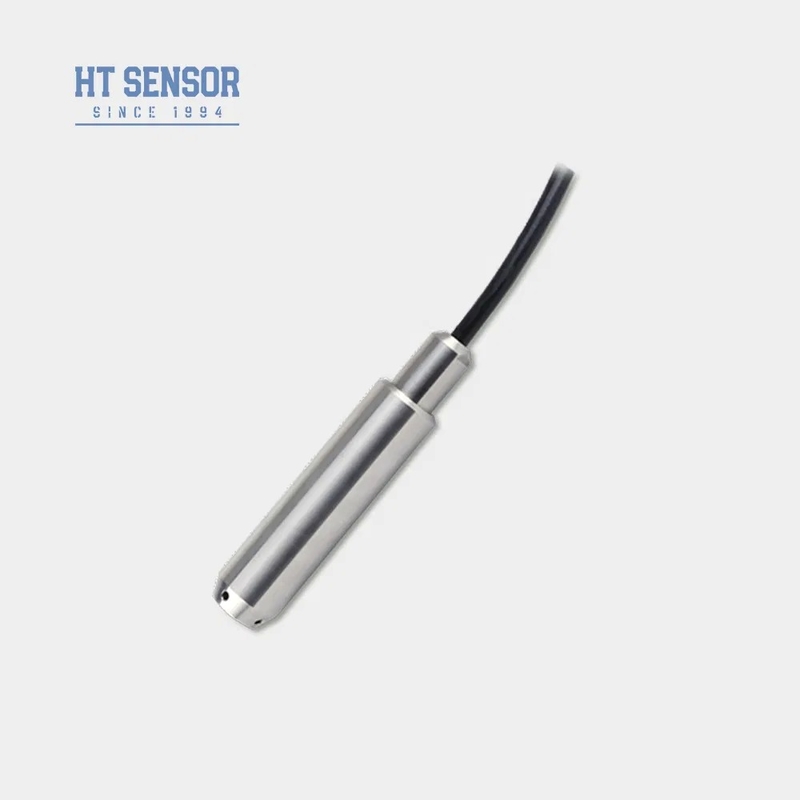

The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Protection Rating | IP67, IP68 |
| Explosion-proof Rating | ExiaIICT6 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Parameter | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
