| 証明: | CE, RoHS, ISO9001 |
|---|---|
| 最小注文数量: | 1 |
| 価格: | 50 |
| モデル番号: | BH93420-I | 出力信号: | 4-20 Ma または RS485 |
|---|---|---|---|
| IP評価: | IP68 | 正味重量: | 0.3kg |
| 横隔膜材料: | 316Lステンレス鋼 | 正確さ: | 0.5%F.S |
| 測定範囲: | 0-10kpa〜200m | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | 1Cr18Ni9Ti |
| 絶縁抵抗: | > =100MΩ@100VDC | 防爆等級: | エキシアルCT6 |
| 保護評価: | IP67、IP68 | Oリングシール: | フロアゴム |
| ケーブル材料: | ポリエチレン、ポリウレタン | ||

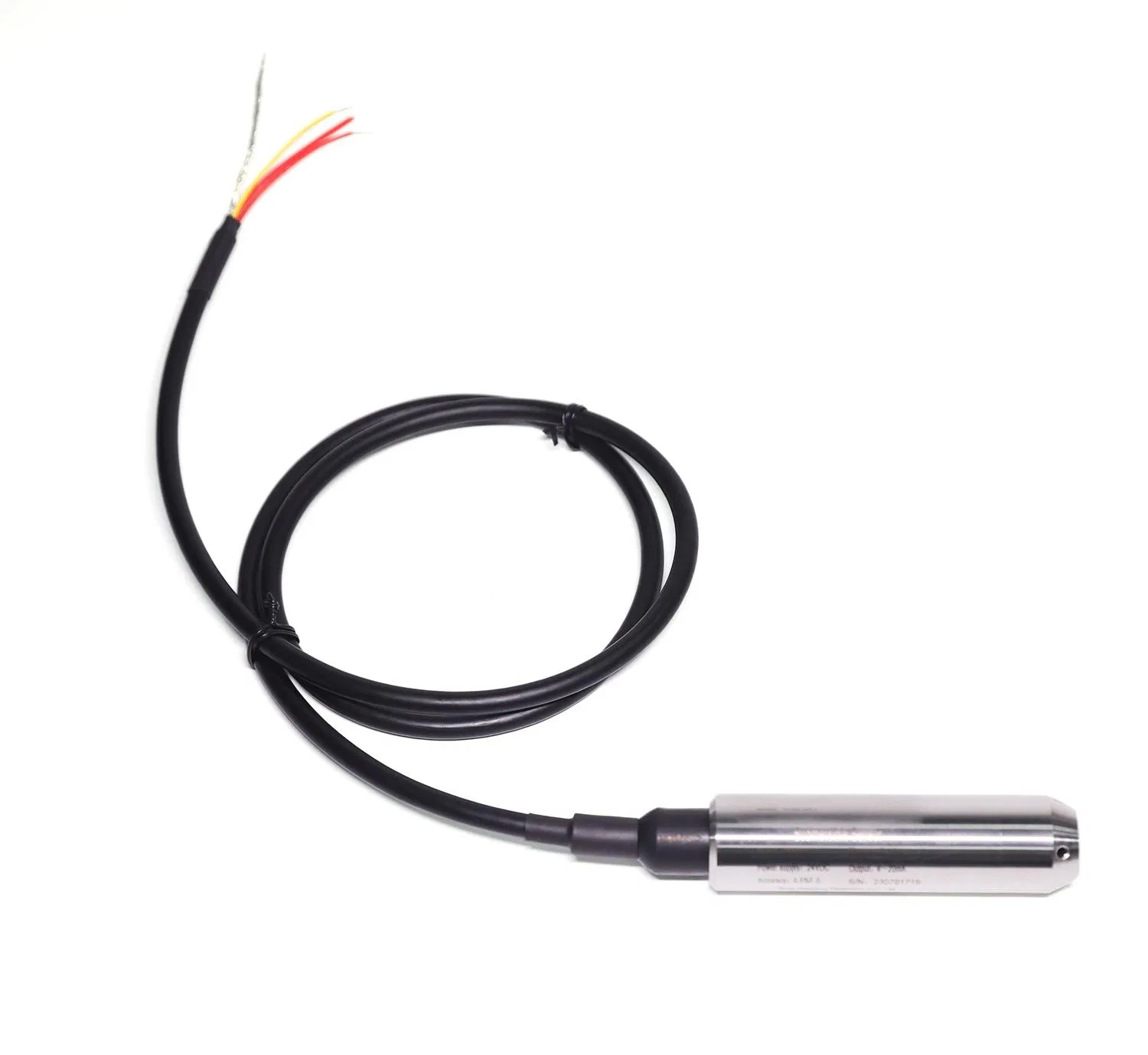

| ハイライト: | IP68 water level transmitter 4-20mA,water level transmitter 0-10m range,4-20mA output water level sensor |
||
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol |
| Code | Option |
|---|---|
| BH93420-I | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S2: 1~5VDC | S3: 0~5VDC | S4: 0~10mADC | S5: 0~20mADC | S6: 0~10VDC | S7: 0.5~4.5VDC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
