| 証明: | CE, RoHS, ISO9001 |
|---|---|
| 最小注文数量: | 1 |
| 価格: | 40 |
| 圧力範囲: | 0-1M-400M | 表示タイプ: | 導かれた |
|---|---|---|---|
| 精度グレード: | 0.1%0.25% | IP評価: | IP68 |
| 正味重量: | 1.6kg | 横隔膜材料: | 316Lステンレス鋼 |
| 測定範囲: | 0〜10m…400m | 圧力タイプ: | 測定圧,絶対圧,密封圧 |
| 過負荷容量: | ≤2x定格範囲 | 動作温度: | -20~80°C |
| 保管温度: | -30〜100ºC | 住宅資料: | 鋳造アルミニウム、ステンレス鋼1cr18ni9ti |
| 絶縁抵抗: | > =100MΩ@100VDC | 防爆等級: | エキシアルCT6 |
| 出力信号: | 4~20mA ハートで | ||
| ハイライト: | HART liquid level transmitter 0-400m range,IP68 water level transmitter,HART level transmitter with warranty |
||

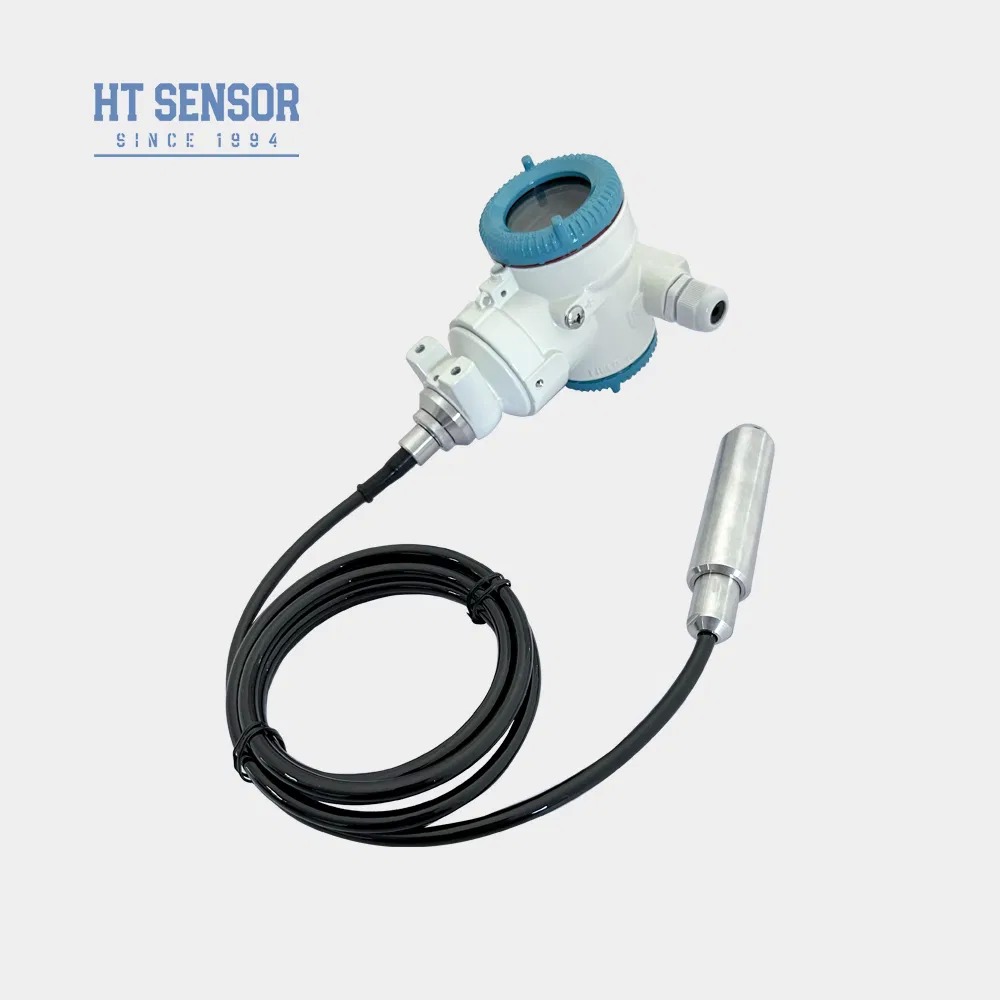

The BHZ93420-III insertion-type intelligent liquid level transmitter features a high-precision piezoresistive silicon pressure sensor for signal measurement. It accurately measures static pressure proportional to liquid level and utilizes HART communication protocol for digital signal transmission and two-way communication.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25°C | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80°C |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| Terminal | Function | Wire Color |
|---|---|---|
| 1 | V+ | Red |
| 2 | V- | Yellow |
| 3 | NC/GND | - |
| 4 | NC | - |
| Code | Option |
|---|---|
| D1 | 24VDC Power Supply |
| S1/S2 | 4~20mADC / 4~20mADC with HART |
| B4/B5/B6 | 2088 with display / 3051 / 3051A |
| G/A/S | Gauge/Absolute/Sealed Pressure |
| C1/C2/C3 | PE/PU/PTFE Cable |
